About this trailer

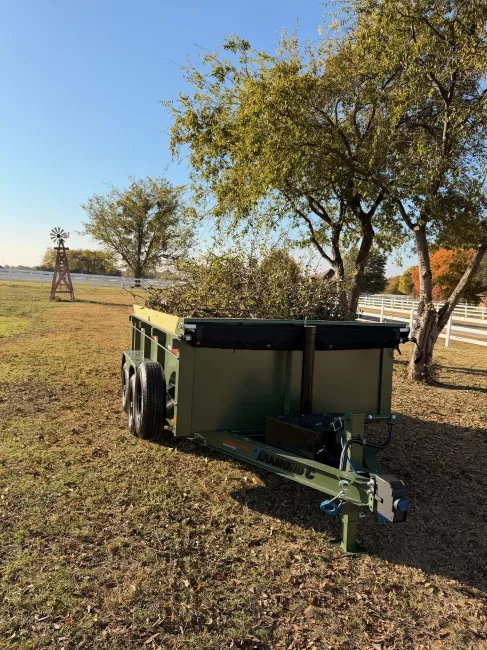

The 2026 Diamond C MDT – 206 Package is built for serious hauling while maintaining maneuverability.
With a GVWR of 9,890 lbs, this tandem-axle dump trailer features dual 6,000 lb Super Lube drop axles with electric brakes and a rugged 5-leaf slipper spring suspension.
The main frame is constructed from a 6-inch I-beam, with the dump body frame reinforced by 3" × 2" rectangle tubing.
It includes a 3-stage telescopic hoist that provides strong lifting power, operated via a power-up / gravity-down hydraulic system.
Standard dimensions are about 12' length by 77" width, with body sides commonly at 24" height (with taller 44" side options available), and it rides on ST225/75R15 10-ply radial tires.
Other standard gear includes:
• 7,000 lb drop-leg jack,
• 21,000 lb Demco EZ-Latch adjustable coupler,
• LED lighting package,
• Steel hydraulic pump box,
• Slide-in ramps,
• 3-way gate with hold-back system,
• Board brackets with a raised front.
What Comes With It
DIAMOND C MDT (Dump)
Key Features
- The 2026 Diamond C MDT – 206 Package is built for serious hauling while maintaining maneuverability.
- With a GVWR of 9,890 lbs, this tandem-axle dump trailer features dual 6,000 lb Super Lube drop axles with electric brakes and a rugged 5-leaf slipper spring suspension.
- The main frame is constructed from a 6-inch I-beam, with the dump body frame reinforced by 3" × 2" rectangle tubing.It includes a 3-stage telescopic hoist that provides strong lifting power, operated via a power-up / gravity-down hydraulic system.
Rental Rates
- Weekday Daily: $115
- Weekend Daily: $135
- Weekend: $460
- 5-Day Week: $460
Specifications
- Make: DIAMOND C
- Model: MDT
- VIN: 46UDD1226T1307818
- Type: Dump
- Hitch: 2 5/16 - 21,000 lb
- Has Plate: 186837N
- Length: 12 ft
- Width: 6.5 ft
- Axles: 2
- Axle Rating: 6K SUPER LUBE
- Tires: 225/75R15 10 PLY
- Brakes: ELECTRIC
- GVWR: 9,890 lbs
- Curb Weight: 3,020 lbs
